Product Description:

Outdoor disconnector switch is a type of electrical switch used in power systems to isolate a circuit from the rest of the system for maintenance or safety purposes. The term "vertical" refers to the orientation of the isolator, which is mounted vertically on a support structure.

Outdoor disconnector switches are commonly used in high voltage transmission and distribution systems to isolate sections of the network for maintenance or repair work. They are designed to handle high voltages and currents and are often installed in outdoor locations.

Outdoor disconnector switches typically consist of a set of stationary and movable contacts that are separated by an air gap. When the switch is in the closed position, the contacts are in contact with each other, allowing current to flow through the circuit. When the isolator is opened, the contacts are separated, interrupting the flow of current through the circuit and isolating it from the rest of the system.

Outdoor disconnector switches are an important component of power system safety and reliability and are designed to operate in a variety of environmental conditions. They are often subject to rigorous testing and certification requirements to ensure that they meet industry standards for performance and safety.

Function:

The main function of a high voltage electrical isolator is to provide electrical insulation between the high voltage AC conductor and the supporting structure, and to support the weight of the conductor. It is designed to withstand high levels of voltage and electrical current, and is typically made of materials that are highly resistant to electrical arcing and corrosion, such as porcelain or polymer.

Sturcture:

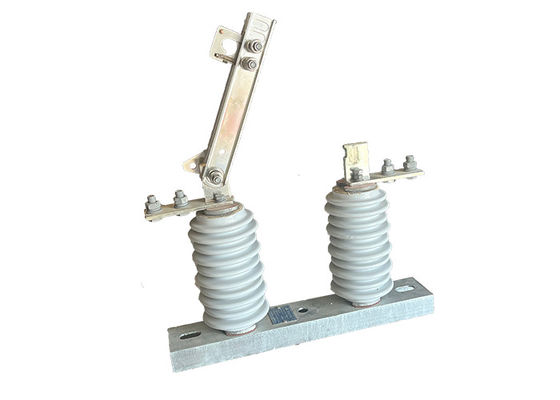

This product is composed of base (plate), post insulator, conductive part and interlock device. One end of the knife is installed on the dynamic contact knife head through bolts, and the other end of the knife is separately connected with the static contact head, and each side is maintained in a good contact state by the pressure of the compression spring. Each knife is slot-shaped type, which not only increases the heat dissipation surface of the knife, but also conducive to reducing the temperature rise, and improve the mechanical strength of the knife, making the dynamic thermal stability against short circuit. The interlocking parts installed at the non-rotating end of the contact knife and the static locking hook on the static contact constitute the opening locking device, which is self-locking when the brake is closed, so that the brake knife will not fall off by itself due to its own weight or the action of electric power, resulting in the opening of the brake without cause.

Application:

1.Circuit isolation: High voltage electrical isolators are primarily used to isolate sections of a power system for maintenance or repair work. This allows workers to work safely on the isolated circuit without the risk of electrocution or other electrical hazards.

2.Safety: High voltage electrical isolators are also used as a safety device to protect workers and the public from electrical hazards. By isolating a circuit, High voltage electrical isolators prevent accidental contact with live parts of the system and reduce the risk of electrical accidents.

3.Fault protection: High voltage electrical isolators can also be used to protect the power system from faults, such as short circuits and overloads. By isolating a faulty section of the system, High voltage electrical isolators prevent the fault from spreading to other parts of the system and causing further damage.

4.Switching: High voltage electrical isolators can be used as a switching device to control the flow of power in a system. By opening or closing the isolator, the flow of power can be directed to different parts of the system as needed.

5.Testing: High voltage electrical isolators can also be used for testing purposes, such as to measure the voltage or current in a circuit, or to test the performance of other components in the system.

Condition:

1.The maximum altitude in the specified area does not exceed 1000 meters above sea level. This altitude limitation is relevant for the installation and operation of the equipment.

2.The ambient air temperature has certain limits. The maximum temperature should not exceed +40°C, and the minimum temperature can vary depending on the specific area. In general areas, the minimum temperature should not drop below -30°C, while in Paramos areas, it should not drop below -40°C.

3.The wind pressure should not exceed 700 Pascal (Pa), which corresponds to a wind speed of approximately 34 meters per second. This limit ensures that the equipment can withstand the force exerted by the wind without compromising its functionality or structural integrity.

4.The earthquake intensity should not exceed 8 degrees. This refers to the maximum intensity of seismic activity that the equipment can withstand without being damaged. The specific scale used to measure earthquake intensity may depend on the region or country.

5.The working environment should be free from frequent violent vibrations. This requirement ensures that the equipment remains stable and operational under normal operating conditions. Excessive vibrations can affect the performance and lifespan of the isolator.

6.Ordinary-type isolators should be installed in locations that are kept away from gas, smoke, chemical deposition, salt-spray fog, dust, and other explosive or corrosive substances. These materials can have detrimental effects on the insulation and conduction capabilities of the isolator, potentially compromising its performance and safety.

7.Pollution-proof type isolators are designed for use in areas with severe contamination. However, even in such areas, there should be no presence of explosive substances or materials that can cause fire. This requirement ensures that the isolator remains safe and functional despite the challenging environmental conditions.
