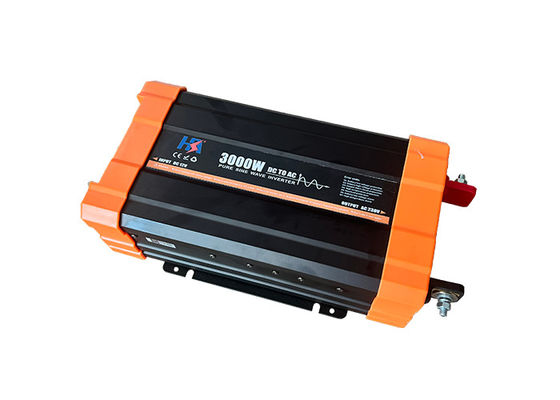

Product Introduction:

The HAS Series inverter, developed by our company, is a cutting-edge power solution designed to meet the increasing demands for efficiency and flexibility in the digital age. It is a pure sine wave inverter that caters to complex power requirements. With its user-friendly design, innovative features, and stylish elements, the HAS series offers a seamless experience, allowing for the smooth operation of diverse application loads. It provides a safe, reliable, and plug-and-play solution to users.

The HAS Series inverter serves as a power supply device that converts direct current from various sources such as storage batteries, solar batteries, and wind turbines into alternating current. It is versatile and can be used in different environments, including homes, outdoor settings, cars, boats, and more. The inverter is equipped with a wired control display panel, which allows users to monitor the working status of the inverter and control its power supply. The inverter's functions can be easily adjusted using the display control buttons, ensuring compatibility with the specific requirements of different users.

Feature:

1.Cost-effective design , price and performance ratio to the extreme；

2.This product is with Cc BOOST function , default Cc BOOST function , user can cancel by setting；

3.With the new generation of high-frequency circuit design , the working efficiency is more than 91%

4.output voltage and frequency can be set by users to meet different requests;

5.Clear LCD Display: The inverter features an LCD display that provides users with comprehensive information, including working parameters, alarms, and fault codes. This allows users to easily monitor the inverter's performance and status.

6.Dual Control Fans: The HAS Series inverter utilizes dual control fans that operate based on temperature and power control. This intelligent design ensures the product's normal operation and eliminates noise at low-power loads, enhancing the overall user experience.

7.Versatile Design: The inverter is designed to be compatible with both vehicles and solar power generation systems. This makes it an ideal choice for users who want to combine the use of renewable energy sources with their vehicle's power supply.

8.Remote Panel Interface: The product is equipped with a remote panel interface, which allows users to connect an optional remote control panel. This feature provides convenient access to the inverter's controls and settings from a distance, enhancing usability and flexibility.

Product Size:

Appearance and Function Introduction:

Display and Buttons:

1. Use the thimble to press the output voltage adjustment button (there is "100V~130V" or"220V~250V" next to it) for 5 seconds to enter the output voltage setting, and the output voltage can be set to 100Vac~130 Vac or 220Vac~250Vac, each time you press it Increase 5Vac, it will be saved automatically in 3 seconds, be default voltage depends on the sales area;

2. Use the thimble to hold down the "50Hz-60Hz" key for 5 seconds to enter the output frequency setting. The output frequency can be set to 50/60Hz, and it will be saved automatically in 3 seconds. The default frequency depends on the sales area;

3. Press and hold the "Plus" button for 5 seconds with the thimble to enter the mode setting.

NORMAL and ENHANCE mode can be set. saved in 3 seconds automatically, default ENHANCE mode.

Safety Instruction:

Application:

The HAS series inverter can be used as the core component of off grid solar power generation equipment, or can also be configured as independent power supply system. The figure as blow shows the basic application of the inverter.

The inverter and battery can form an independent power supply system, and the loaded equipment and use time is based on output power of the inverter and battery capacity. The inverter cannot charge the battery. If you need to charge the battery, please purchase a charger separately.

Working Environment:

In order to ensure the performance and the lifespan of the device, it is necessary to select the installation location of this inverter to avoid the conditions as below:

1. This device should be installed indoors with well ventilation;

2. Avoid using in the environment of direct sunlight, exposure, rain, high humidity, corrosive gas and mechanical shock;

3. The working temperature is -20-40 C and humidity is 10-90% RH, without condensation. Storage temperature is -20-60 0 and humidity is 10-95% RH;

4. Packaging drop test follows IATA standards.

Product Parameter:
