Product Introduction:

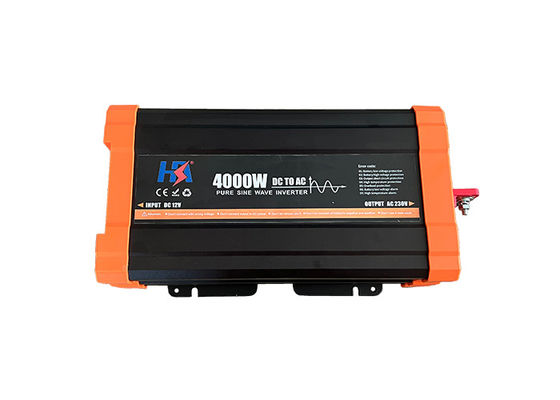

The HAS Series inverter is the pure sine wave inverter, which is a new power solution developed by our company for complex power request based on users ' higher demands for efficiency and lexibility in the digital age . The user-friendly design , innovation and stylish elements of the HAS series inverters enable us a seamless experience due to complex application loads and a safe ,reliable, plug and -play solution .

The HAS Series inverter is a power SUPPLY device that converts direct current (storage battery, solar battery, wind turbine etc . ) into alternating current. This series of inverters can be used at home ,outdoor, car, boat and other environments . The inverter is with a wired control display panel , which can check the working status information of the inverter and turn on/of the inverter power SUPPIY as well .The inverter function can be set by the display control buttons on the inverter to meet the requests from different users .

Characteristics:

1.Cost-effectiveness: The HAS Series inverter is designed to offer a high price-performance ratio, providing excellent value for customers.

2.CC BOOST function: The inverter comes with a default CC BOOST function, which can be canceled by users through settings. This feature adds flexibility to the inverter's operation.

3.High working efficiency: The inverter utilizes a new generation of high-frequency circuit design, achieving a working efficiency of over 91%. This efficiency helps optimize power usage and reduces energy waste.

4.Adjustable output voltage and frequency: Users have the ability to set the desired output voltage and frequency according to their specific requirements, allowing for customization and compatibility with different devices and applications.

5.LCD display for monitoring: The inverter is equipped with an LCD display that shows important working parameters, alarms, and fault codes. This clear display ensures users have a comprehensive understanding of the inverter's performance and status.

6.Dual control fans: The fans in the inverter feature dual control functions, including temperature and power control. This design ensures the product's normal operation and minimizes noise when operating at low-power loads.

7.Vehicle integration: The inverter is designed to conform to vehicle specifications, making it suitable for use in vehicles and in combination with solar power generation. This versatility allows for power supply solutions in both mobile and stationary settings.

8.Remote panel interface: The inverter includes a remote panel interface, which enables the use of an optional remote control panel. This feature enhances convenience and allows for remote monitoring and control of the inverter's functions.

Product Size:

Appearance and Function Introduction:

Display and Buttons:

1.To enter the output voltage setting:

-Locate the output voltage adjustment button on the device. It should have "100V130V" or "220V250V" next to it.
-Take the thimble and position it on top of the button.
-Apply pressure with the thimble and hold it down for 5 seconds.
-After 5 seconds, the device should enter the output voltage setting mode.
-Each time you press the button while in this mode, the output voltage will increase by 5Vac.
-Once you have set the desired output voltage, the device will automatically save the setting within 3 seconds.
-The default voltage setting may vary based on the sales area.

2.To enter the output frequency setting:

-Locate the "50Hz-60Hz" key on the device.
-With the thimble, press and hold down the "50Hz-60Hz" key for 5 seconds.
-After 5 seconds, the device should enter the output frequency setting mode.
-Pressing the key while in this mode will toggle between 50Hz and 60Hz.
-Once you have set the desired output frequency, the device will automatically save the setting within 3 seconds.
-The default frequency setting may vary based on the sales area.

3.To enter the mode setting:

-Locate the "Plus" button on the device.
-With the thimble, press and hold down the "Plus" button for 5 seconds.
-After 5 seconds, the device should enter the mode setting mode.
-Pressing the "Plus" button while in this mode will toggle between NORMAL and ENHANCE modes.
-Once you have set the desired mode, the device will automatically save the setting within 3 seconds.
-The default mode may vary, with the ENHANCE mode being the default in most cases.

Safety Instruction:

Application:

The HAS series inverter has versatile applications in the field of solar power generation. It can serve as the core component of off-grid solar power generation equipment or be configured as an independent power supply system. The basic application of the inverter isThe HAS series inverter can be used as the core component of off-grid solar power generation equipment or as an independent power supply system. It is a versatile device that offers various applications.

In off-grid solar power generation systems, the HAS series inverter plays a crucial role in converting the direct current (DC) generated by solar panels into alternating current (AC) for powering electrical appliances. It ensures a stable and reliable power supply in areas where grid access is limited or unavailable.

Additionally, the HAS series inverter can be configured as an independent power supply system. This means that it can be paired with a battery to create a standalone power solution. The loaded equipment and duration of use depend on the output power of the inverter and the capacity of the battery. It is important to note that the inverter itself cannot charge the battery. If battery charging is required, a separate charger needs to be purchased and integrated into the system.

Installation:

Product Parameter:

Power and Load

Pure sine waveform The nominal current or power of most electric tools, household appliances, and audiovisual devices is within the nominal power range of the inverter, but overload protection may trigger when starting. Inverters drive resistive loads or switching power loads easily. Because resistive loads are linear loads, they can work at full load, such as electric stove, rice cooker, LCD TV etc.

Some audio/video equipment and electric tools require a higher level of power than resistive loads to work properly, such as asynchronous motors, CRT TV, compressors, water pumps etc., requesting 2 to 6 times the working current to start. The ability to run a specific load is subject to testing.
