Three Phase 50Hz Pole Mounted Breaker High Voltage High Efficiency

AC Pole Mounted Circuit Breaker High Voltage High Efficiency With Smart Controller Auto Reset Vacuum Circuit Breaker

Product Description:

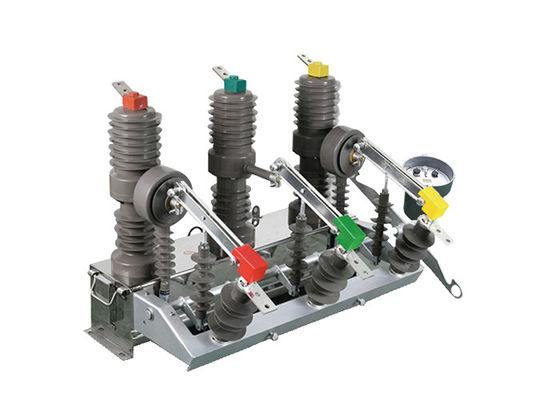

The ZW32-12 pole mounted circuit breaker is a robust distribution equipment designed for outdoor applications. It operates at a rated voltage of 12kV and a three-phase AC frequency of 50Hz. This circuit breaker is primarily utilized to interrupt and close the load current, overload current, and short circuit current within electronic systems.

One of the key advantages of the ZW32-12 circuit breaker is its versatility. It finds extensive use in various settings, including substations, industrial and mining enterprise distribution systems, and rural power grids. This makes it a suitable choice for a wide range of protection and control applications.

Additionally, the ZW32-12 circuit breaker can serve as a sectional switch, allowing for efficient power grid operation. By utilizing it in this manner, specific sections of a distribution network can be isolated for maintenance or fault handling purposes.

To enhance its functionality further, the ZW32-12 circuit breaker can be integrated with a controller. This integration enables the achievement of distribution network automation, facilitating remote control, monitoring, and automation of the circuit breaker's operations. This feature contributes to the overall efficiency and reliability of the distribution network.

Controller Introduction:

The controller supports communication via a 485/232 interface, which allows for remote monitoring and control. It can also communicate through optical fiber or wireless connections.

When a heavy switch is detected, the device automatically accelerates the tripping process in the event of a permanent fault. This feature helps protect the system from damage in such situations.

Remote/Manual Closing and Reclosing: The user has the option to remotely or manually close and reclose the circuit. Additionally, if the user forgets to remove the grounding switch when restoring power after repairing a line, the device can accelerate the tripping process to ensure safety.

It allows for the adjustment of three reclosing delay times. This feature provides flexibility in determining the appropriate delay before reclosing the circuit after a fault.

The jump closing circuit of the controller incorporates an anti-misoperation design. It includes an anti-jump function to prevent unintended closure of the circuit.

The controller can distinguish between in-zone and out-of-zone faults based on zero-sequence current. This capability helps identify the location of faults and enables more targeted troubleshooting and maintenance.

Prevention of Misoperation: The remote control switch is designed to prevent misoperations. This design feature ensures that the switch is not accidentally triggered, thereby reducing the risk of unintended actions.

Application:

1.Substations: It is commonly used in both indoor and outdoor substations for protection and control of medium-voltage power distribution. The vacuum circuit breaker ensures reliable interruption of fault currents, overload currents, and load currents, safeguarding the substation equipment.

2.Industrial and mining enterprises: The ZW32-12 vacuum circuit breaker is employed in the distribution systems of industrial and mining enterprises to protect motors, transformers, and other electrical equipment from overcurrents and short circuits. It helps maintain the stability and safety of the power supply in these facilities.

3.Hospitals and healthcare facilities: The ZW32-12 vacuum circuit breaker is used in hospitals and healthcare facilities to protect electrical systems and medical equipment. It provides reliable circuit interruption and safeguards against potential hazards, ensuring the continuous operation of critical medical services.

4.Commercial and residential buildings: The vacuum circuit breaker finds application in commercial and residential buildings for electrical distribution and protection. It ensures the safety of electrical systems, preventing overloads and short circuits, and minimizing the risk of electrical fires.

5.Smart Grid Applications: The circuit breaker's intelligent control capabilities make it compatible with smart grid applications. It can be integrated into smart grid systems to enable remote monitoring, fault diagnosis, and load management, contributing to the overall efficiency and reliability of the grid.

6.Electric Vehicle Charging Stations: With the increasing adoption of electric vehicles (EVs), the Intelligent Permanent Magnetic Circuit Breaker can be used in EV charging stations. It provides fast and accurate protection against overcurrents and short circuits, ensuring safe and reliable charging operations.

Sructure:

1.Frame: The frame serves as the main structural component of the circuit breaker, providing support and housing for the internal components.

2.Current Carrying Components: These components include the contacts, conductors, and current-carrying parts that form the electrical path through the circuit breaker. They are responsible for conducting and interrupting the flow of current.

3.Permanent Magnet Assembly: The permanent magnet assembly is a crucial component of the circuit breaker. It consists of permanent magnets that generate a magnetic field to control the tripping action of the circuit breaker. The magnets are carefully positioned to provide the desired magnetic force for efficient and precise operation.

4.Tripping Mechanism: The tripping mechanism is responsible for initiating the opening of the circuit breaker when a fault or overload condition is detected. In an Intelligent Permanent Magnetic Circuit Breaker, the tripping mechanism is designed to respond rapidly and accurately to the fault signals received from the intelligent control system.

5.Intelligent Control System: The intelligent control system is the brain of the circuit breaker. It typically includes microprocessors, sensors, and other electronic components that monitor electrical parameters, analyze fault conditions, and control the operation of the circuit breaker. The control system may also feature communication interfaces for remote monitoring, data logging, and integration with other systems.

6.Auxiliary Components: Various auxiliary components may be present in an Intelligent Permanent Magnetic Circuit Breaker, depending on the specific application and requirements. These can include indicators, auxiliary contacts for signaling and control purposes, mechanical interlocks, and terminals for external wiring connections.

7.Enclosure: The circuit breaker is typically enclosed within a housing to provide protection against environmental factors, such as dust, moisture, and physical damage. The enclosure may be made of durable materials like metal or high-quality plastics.

Condition:

1.Altitude of not more than 2000 meters;

2.Ambient air temperature: -45 ° C ~ + 40 ° C. Daily temperature difference: 25 ° C;

3.Wind speed not more than 35 m / s

4.No flammable, explosive dangerous chemical corrosion and violent vibration places.

Technical Parameter:
