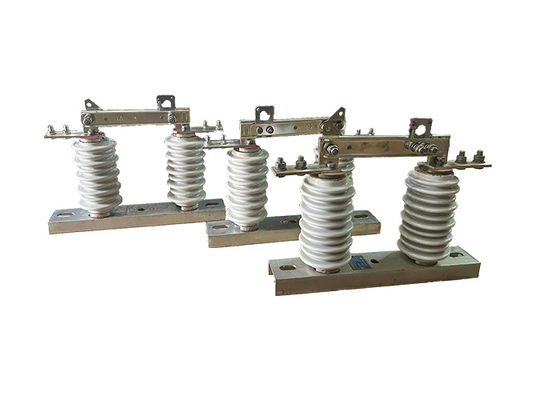

Isolation Control HookStick Disconnect Switch 630A/1000A/1250A Overhead High Voltage Vertical Isolator Switch

Isolation Control HookStick Disconnect Switch 630A/1000A/1250A Overhead High Voltage Vertical Isolator Switch



Product Description:


High voltage isolator switch is a type of electrical switch used to isolate a section of an overhead power transmission line for maintenance or repair. It is typically used in high voltage electrical systems, such as those used by power utilities to transmit electricity over long distances.
The switch is mounted on an overhead structure, such as a transmission tower or pole, and is designed to withstand the harsh environmental conditions encountered in outdoor electrical systems. It features a vertical, or up-and-down, motion to engage or disengage the switch contacts, which are typically made of copper or other conductive materials.
The isolator switch is designed to provide a visible break in the transmission line, allowing maintenance personnel to safely work on the line without risk of electrocution or damage to equipment. It is often used in conjunction with other safety devices, such as grounding switches and surge arrestors, to protect the electrical system and the people working on it.



Application:


1.Power Grids: The overhead high voltage vertical isolator switch is a critical component in power grids, where it is used to isolate sections of the transmission line for maintenance or repair. This helps ensure that the power grid remains operational and reliable, even during maintenance or repair activities.
2.Electrical Substations: The overhead high voltage vertical isolator switch is also commonly used in electrical substations, where it is used to isolate individual transformers or other equipment for maintenance or repair. This helps ensure that the substation remains operational and reliable, even during maintenance or repair activities.
3.Renewable Energy Systems: The overhead high voltage vertical isolator switch is also used in renewable energy systems, such as wind and solar power plants, to isolate sections of the transmission line for maintenance or repair. This helps ensure that the renewable energy system remains operational and reliable, even during maintenance or repair activities.



Operation:


High voltage isolator switch separates the conductive part from the base using an insulator to ensure a normal working insulation distance and fix the conductive part, insulator, and base as an integral switching device. When it is in the open position, there is a visible gap and a proper breaking insulation distance to withstand the normal working voltage. When it is in the closed position, it can reliably carry the normal working current and short-circuit fault current. Due to the presence of a dedicated arc extinguishing device, it can only be used for switching circuits with voltage but no load. The opening and closing operations are carried out by using an insulating hook to pull or push the round hole in the interlock, causing the dynamic interlock hook to disengage and engage with the static interlock hook.


Safety Tips:

1.Always wear appropriate personal protective equipment (PPE) such as gloves, safety glasses, and flame-resistant clothing.
Before working on the switch, ensure that the power supply is turned off, and the switch is properly grounded.
2.Follow the manufacturer's instructions for operating the switch, and do not attempt to bypass safety features or use the switch for purposes other than its intended use.
3.When working on the switch, use insulated tools and equipment to prevent electric shock.
4.Avoid touching any conductive parts of the switch and keep a safe distance from the switch when it is in operation.
5.Never attempt to repair or modify the switch yourself unless you are a qualified and trained professional.
6.Keep the area around the switch clean and free of debris that may interfere with its operation.
7.Regularly inspect the switch for signs of wear or damage, and replace any damaged or worn parts as soon as possible.
8.Only authorized personnel should be allowed to operate or perform maintenance on the switch.
9.In case of an emergency, follow established emergency procedures and shut off power to the switch immediately.
