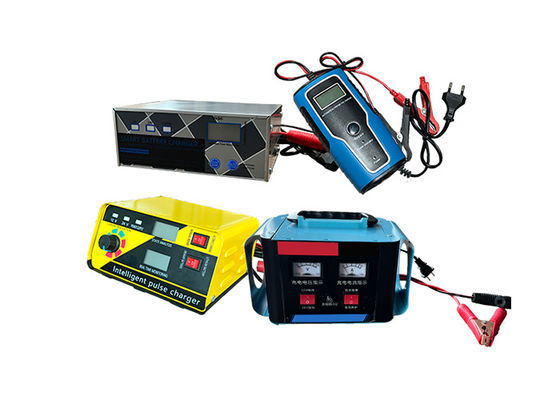

12V/24VLead-Acid/ Lithium Portable Motor Battery Charger Automatic Controll Power Supply Adapter Led/Lcd Display

12V/24VLead-Acid/ Lithium Portable Motor Battery Charger Automatic Controll Power Supply Adapter Led/Lcd Display

Product Introduction:

Our factory specializes in manufacturing the Pulse battery charger, which is specifically tailored to cater to a wide range of battery types. These include lead-acid batteries, maintenance-free batteries, start batteries, start-stop batteries, 12V and 24V batteries, as well as 12.6V lithium batteries.
To ensure precise control over the charging process, our charger incorporates a dedicated intelligent microcomputer chip. This chip enables effective monitoring and management of the charging parameters. The charger utilizes advanced pulse width modulation (PWM) technology, resulting in a compact size that promotes safety and convenience.
Efficiency is a key feature of our Pulse battery charger. It offers high-efficiency conversion, ensuring that the energy input is effectively converted into the desired output for charging the battery. The charger also provides a stable output current, allowing for consistent and reliable charging performance. With its large design capacity, our charger is capable of operating at full load for extended periods, making it a reliable and durable solution.
Environmental sustainability is a core principle behind our Pulse battery charger. It is designed as a next-generation eco-friendly charger, taking into consideration the impact on the environment. By incorporating efficient charging technology, the charger minimizes energy waste and reduces its carbon footprint.

Safety is a top priority in our charger design. Our chargers are equipped with protective features such as short-circuit protection, reverse polarity protection, overtemperature protection, and low-voltage protection. These safety measures safeguard both the charger and the battery being charged, minimizing the risk of damage or accidents.

Our chargers support various charging states, including constant current, constant voltage, floating, trickle, and others. These charging states are designed to optimize the charging process and improve battery life. By reducing the rate of water loss from the battery and eliminating issues like battery heating and overcharging, our chargers contribute to prolonging battery lifespan and ensuring its optimal functioning.

Operation Mode:

No-load standby: When the charger separates from the battery due to poor contact during charging or replaces another battery, the display will clearly show empty On-board standby. Standby is equivalent to about 2W energy consumption of small luminous lamps.

Constant current mode: When the battery voltage is lower than the charger's set voltage, it is a constant current charging mode, and the charger will provide a constant charging current to the battery.It has the effect of protecting the battery and charger.

Constant pressure mode: Pulse width modulation (PWM) technology is used. Precisely control the charger's charge current and output voltage to ensure that the battery is safely fully charged. It is best to avoid overcharging the battery.

Floating charge mode: When the battery is about to be fully charged, the charger does not stop charging,but still provides a constant float charge voltage and a small float charge stream to supply the battery.

Trickle mode: When the battery voltage is close to the set voltage value, the charge current gradually decreases to the set current. The charger will automatically switch from charging mode to trickle mode. Indicates that charging is complete. You can also continue to float.

Technical Parameters:

Rated input voltage range:110V-250V

Output voltage:12V/24V

Rated operating frequency:50/60HZ

Full load conversion efficiency:93%

Operating temperature range:-30°C-45°C

Charging mode:No load - constant current-constant pressure - float charge - trickle

Operation:

Step 1: Check the current voltage of the battery to be charged.

Step 2: Whether the output voltage of the charger matches.

Step 3: Connect the charger and the battery to be charged correctly as required.

Step 4: Check that the mains voltage matches the charger's rated input voltage.

Step 5: Connect the power and connect the battery, observe whether the indicator light is on, and whether the cooling fan is working when charging.

Step 6: If the charger is not working properly, quickly disconnect the mains and check the mains, battery and all connections. (Please contact customer service in time)

Function:

Lithium battery: Specially set for charging three strings of 12.6V lithium batteries. The 12V lithium battery has a full charge voltage of 12.6V. It is forbidden to charge lithium batteries or faulty batteries of other specifications.

Ordinary battery: For the ordinary battery charging file(12V24V battery automatic recognition), it can charge12V,24V battery. When selecting the ordinary battery intelligent charging mode, when charging the 12V battery, the full voltage is 14.2V±0.2V, and the full voltage value for charging the 24V battery is 29.2V±0.4V.

Start-stop battery:For the start-stop battery file(12V24V battery automatic identification), it can charge 12V,24V battery, when selecting start-stop battery intelligent charging mode, charge the 12V battery, the full charge voltage is 14.6V±0.2V, and the full voltage value of the battery is 29.2V±0.4V.

Advantage:

Smart mode:

When the user uses it for the first time, make sure that the switch is adjusted to the smart gear for charging. D uring the charging process, the charging current is automatically adjusted according to the battery size and battery status, and the charging is automatically stopped after charging to the set voltage value. This gear is full of self-stops.

Repair Mode:

Only the battery is below 11V voltage, this manual mode is for the battery internal resistance characteristics, professionally designed charging program, help repairing the battery function, so that the battery effect plays better, but the repair mode work must be carried out under manual care, in the battery shell has a slight heat when the repair is stopped. The notification repair time can be up to 1-2hours.

Questions&Answers:

Q: Why is the current getting smaller and smaller?The current is not 30A.

A: Charging principle: pulse. Pulse can protect the battery and prolong its service life.

The difference is that the pulse charger can keep the charging process dynamic, balance the charging and discharging process, reduce the water loss during the charging process, and prevent the problem of sulfation, so that the battery capacity can be restored and the battery life will be increased.

Pulse is not a constant voltage and current. It will match the charging voltage and current according to the battery status. The charging current will become smaller and smaller as the battery power increases.

The pulse is designed to better protect the battery from being injured due to overcharge.

Not all batteries can reach the peak current. If the battery capacity is large and the power loss is severe, the current will be higher.

Q: Are 12V/24V and lithium battery automatically compatible?

A: 1. Manual selection is required; 2. 12V/24V self-defined identification, lead-acid battery, water battery, dry battery. 3. Lithium battery: 12V, lithium iron phosphate battery cannot be charged (it depends on whether the charger supports 12.6V lithium battery)

Q: How to operate?

A: 1.The first step is to check whether the battery is good or bad. Operation method: the charger is not plugged in, just clip the charger clip to the positive and negative poles of the battery. The display will show the current internal pressure of the battery. There are two conditions not shown: 2. Charger problem 2. Battery voltage is lower than 8V.

The second step is that the charger has normal input and output. Only plug in, and the display will be on. By default, 12V and POWER are on. When the red and black clips meet, the spark charger is completely normal.

Q:What is the differences between chargers?

A:1. Make sure what type of battery needs to be charged.
2.Different power sizes affect the charging time of the charger.

Q: What is the function of the charger?

A:1. Check the internal pressure of the battery; 2. Repair; 3. Charging.

Q: Why can't the battery reach the current you said?

A: Generally, the battery capacity is not large enough to give all the output current to the battery. I'm afraid that the battery can't bear it, which will make the battery damage.

P. S. Most of the batteries that need to be recharged with chargers have some problems

Q: Why cant the two 12V series connection recognize 24V for charging?

A: If the battery is a combination of two 12V batteries and can not directly identify the 24V charging, the internal pressure of the two batteries can be detected separately, and the large difference is unrecognizable. Two 12V batteries need to be charged separately

Q: Why does the display screen not light after plugging in?

A: 1.Plug in only, the display screen is not on, and the indicator light is not on. The safety tube is burnt and the product is defective

2.The 12V and power indicators are on. It may be that the display cable is loose. Maybe the display screen is broken
