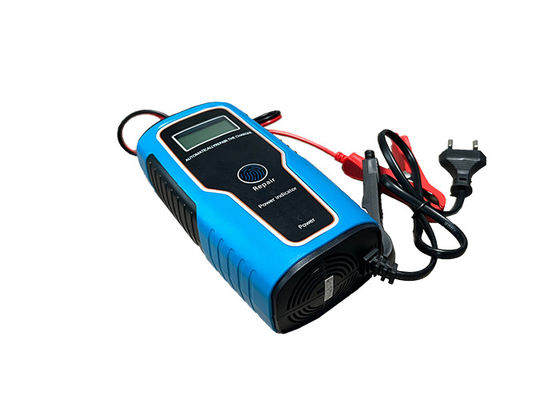

HAS-Q-618X Jump Starter Portable Charger 12V 72W Lead-acid Fully Automatic Intelligent Battery Charger

50PCS
MOQ
US$10.99 based on EXW
Price
HAS-Q-618X Jump Starter Portable Charger 12V 72W Lead-acid Fully Automatic Intelligent Battery Charger
Features Gallery Product Description Request A Quote
Features
Specifications
Total Power Cord Length: 60cm
Total Length Of Clip Wire: 55cm
Customization: Yes
MOQ Of Customization: 500pcs
Power: 72w
Size: 155*75*60 (mm)
Highlight:

12V Jump Starter Portable Charger

,

Fully Automatic Jump Starter Portable Charger

,

72W Jump Starter Portable Charger

Basic Infomation
Place of Origin: China
Brand Name: HAS
Model Number: HAS-Q-618X
Payment & Shipping Terms
Packaging Details: Cardboard Box
Delivery Time: 7 work days
Payment Terms: 100T/T
Supply Ability: 99999
Product Description

HAS-Q-618X Jump Starter Portable Charger 12V 72W Lead-acid Fully Automatic Intelligent Battery Charger

Product Introduction:



Pulse battery charger is our factory according to lead-acid battery, maintenance-free battery, start battery, start-stop battery,12V24VBattery,12.6V lithium battery and professional design and
production.
It adopts a dedicated intelligent microcomputer chip to control the whole process, and adopts advanced pulse width modulation technology. It has small size, safe and convenient,and high efficiency conversion, stable output current, large design capacity, can be operated at full load for a long time and so on. It is a new generation of eco-friendly chargers.
The charger has short-circuit protection, reverse polarity protection, overtemperature protection, and low-voltage protection. It can realize constant current, constant voltage, floating, trickle and other charging states.Improve battery life. Reduce the rate of battery water loss and eliminate battery heating and drum charging.


Protection:



1.Overtemperature protection: This feature ensures that the charger does not operate at excessively high temperatures, which could potentially damage the charger or the connected devices. When the charger's temperature exceeds 105°C, it will automatically shut down to protect itself. During the shutdown, no current output will be provided. The charger can be resumed once the temperature drops to around 80°C or after approximately ten minutes of being powered off.
2.Short-circuit protection: In the event of an unexpected short circuit in the charger's output, the charger will automatically turn off its output to prevent any damage. The short circuit needs to be eliminated by correcting the connection. Once the short circuit is resolved and the connection is correct, the charger will automatically resume charging.
3.Reverse polarity protection: This protection mechanism safeguards against improper polarity connections. If the charger's positive and negative poles are connected incorrectly when charging, the charger will automatically turn off its output. To rectify this, the polarity must be correctly connected. Once the correct polarity connection is established, the charger will automatically resume charging.
4.Low-voltage protection: This feature prevents the charger from initiating the charging process when the battery's single cell voltage falls below 1.5V. By not starting the charging process, the charger protects both itself and the connected device from potential damage caused by voltage mismatches between the battery and the charger.



Operation:



Step 1: Check the current voltage of the battery to be charged.
Step 2: Whether the output voltage of the charger matches.
Step 3: Connect the charger and the battery to be charged correctly as required.
Step 4: Check that the mains voltage matches the charger's rated input voltage.
Step 5: Connect the power and connect the battery, observe whether the indicator light is on, and whether the cooling fan is working when charging.
Step 6: If the charger is not working properly, quickly disconnect the mains and check the mains, battery and all connections. (Please contact customer service in time)


Function:



Lithium battery: Specially set for charging three strings of 12.6V lithium batteries. The 12V lithium battery has a full charge voltage of 12.6V. It is forbidden to charge lithium batteries or faulty batteries of other specifications.

Ordinary battery: For the ordinary battery charging file(12V24V battery automatic recognition), it can charge12V,24V battery. When selecting the ordinary battery intelligent charging mode, when charging the 12V battery, the full voltage is 14.2V±0.2V, and the full voltage value for charging the 24V battery is 29.2V±0.4V.

Start-stop battery:For the start-stop battery file(12V24V battery automatic identification), it can charge 12V,24V battery, when selecting start-stop battery intelligent charging mode, charge the 12V battery, the full charge voltage is 14.6V±0.2V, and the full voltage value of the battery is 29.2V±0.4V.



Technical Parameters:



Rated input voltage range:110V-250V
Output voltage:12V/24V
Rated operating frequency:50/60HZ
Full load conversion efficiency:93%
Operating temperature range:-30°C-45°C
Charging mode:No load - constant current-constant pressure - float charge - trickle



Safety Tips:



In order to better maintain your battery, please do not charge the battery until it is depleted. Lead-acid batteries are not memory batteries.Suitable for diligent charging and diligent release. If the power of the 12V battery is consumed below 10V, the battery is greatly damaged at first, and the charger will also be easily protected by overcurrent, when the user can turn off the power for ten minutes to continue to use. At this point, your battery is low voltage 10V.In a severe deficit state. Please pay attention to the battery next time!!!



FAQ:



Q: Why is the current getting smaller and smaller?The current is not 30A.
A: Charging principle: pulse. Pulse can protect the battery and prolong its service life.
The difference is that the pulse charger can keep the charging process dynamic, balance the charging and discharging process, reduce the water loss during the charging process, and prevent the problem of sulfation, so that the battery capacity can be restored and the battery life will be increased.
Pulse is not a constant voltage and current. It will match the charging voltage and current according to the battery status. The charging current will become smaller and smaller as the battery power increases.
The pulse is designed to better protect the battery from being injured due to overcharge.
Not all batteries can reach the peak current. If the battery capacity is large and the power loss is severe, the current will be higher.

Q: Are 12V/24V and lithium battery automatically compatible?
A: 1. Manual selection is required; 2. 12V/24V self-defined identification, lead-acid battery, water battery, dry battery. 3. Lithium battery: 12V, lithium iron phosphate battery cannot be charged (it depends on whether the charger supports 12.6V lithium battery)

Q: How to operate?
A: The first step is to check whether the battery is good or bad. Operation method: the charger is not plugged in, just clip the charger clip to the positive and negative poles of the battery. The display will show the current internal pressure of the battery. There are two conditions not shown: 1. Charger problem 2. Battery voltage is lower than 8V.
The second step is that the charger has normal input and output. Only plug in, and the display will be on. By default, 12V and POWER are on. When the red and black clips meet, the spark charger is completely normal.

Q:What is the differences between chargers?
A:1. Make sure what type of battery needs to be charged.
2.Different power sizes affect the charging time of the charger.

Q: What is the function of the charger?
A:1. Check the internal pressure of the battery; 2. Repair; 3. Charging.

Q: Why can't the battery reach the current you said?
A: Generally, the battery capacity is not large enough to give all the output current to the battery. I'm afraid that the battery can't bear it, which will make the battery damage.

P. S. Most of the batteries that need to be recharged with chargers have some problems

Q: Why cant the two 12V series connection recognize 24V for charging?
A: If the battery is a combination of two 12V batteries and can not directly identify the 24V charging, the internal pressure of the two batteries can be detected separately, and the large difference is unrecognizable. Two 12V batteries need to be charged separately

Q: Why does the display screen not light after plugging in?
A: 1.Plug in only, the display screen is not on, and the indicator light is not on. The safety tube is burnt and the product is defective
1. The 12V and power indicators are on. It may be that the display cable is loose. Maybe the display screen is broken
