Automatic Boundary Load Vacuum Breaker Switch Standard IEC62271-100 12kV For Power Distribution Substation
Product Description:

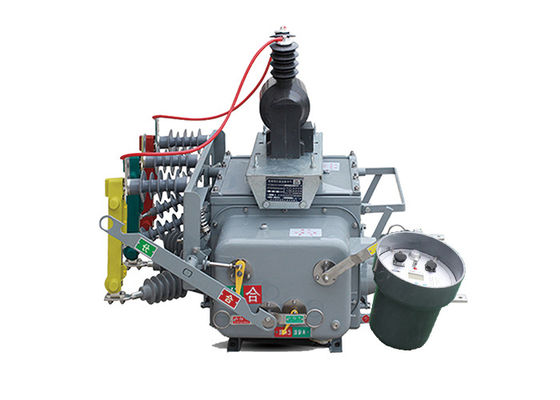

ZW20-12 boundary load switch is the three-phase AC 50Hz outdoor high-voltage switchgear is mainly used for 10kV outdoor distribution systems in agricultural and urban networks. It is used for load switching, load breaking, overload current, short circuit current, and similar applications.
The overall structure is a three-phase common box type, consisting of operating mechanism, conductive circuit, insulation system, sealing elements, and housing.
It is equipped with a corresponding intelligent remote terminal to meet the requirements of distribution automation applications.
• When combined with an intelligent controller with GSM SMS function, it becomes the ZW20-12(Z) outdoor intelligent high-voltage AC vacuum circuit breaker.
• When combined with a sectionalizer controller, it becomes the ZW20-12(F) outdoor sectionalizer high-voltage AC vacuum circuit breaker.
Characteristics of the controller:
Intelligent terminal controllers have functions such as protection, automatic control, inspection/query, communication, and software management.
1.Comprehensive Functionality:
• Perfectly implement various functions such as circuit protection, remote control, alarm, and remote monitoring.
2.Low Cost and Practicality:
• No need for any communication hardware investment in GSM networks. Simply purchase a SIM card and activate SMS services.
3.Multiple Security Measures:
• Use designated mobile phones, information encryption, password verification, and other security measures.
• The GSM module can specify a mobile number and only accept commands from the bound phone.
• Communication messages for remote control and other commands are encrypted.
• Follows a pre-set-confirm-execute-verify remote control method to ensure the security of system control and prevent misoperations.
4.Simple System Configuration:
• No need to install any communication lines or debug communication lines.
• Simply install the SMS intelligent monitoring terminal correctly, insert the SIM card, set the designated mobile number, and the system will start running.
5.Mobile Monitoring Anytime, Anywhere:
• Real-time monitoring and viewing can be done in any location with a signal, without the need for personnel to be stationed for monitoring.
Application:
1.Disconnecting Switch and Contact Switch: The ZW20-12(F) circuit breaker can be used as a disconnecting switch or contact switch in the ring network configuration of power distribution systems. It enables the opening and closing of circuits during maintenance or fault conditions.
2.Automatic Switch Device: It serves as an automatic switch device, allowing for the implementation of load switching in the ring network configuration. This feature enhances the flexibility and efficiency of power distribution.
3.Boundary Switch: In branch lines of the power supply, the ZW20-12(F) circuit breaker can function as a boundary switch or "watchdog." It helps in monitoring and protecting the branch line against faults and abnormal conditions.
4.Recloser and Sectionalizer: The circuit breaker can operate as a recloser and sectionalizer in overhead distribution networks. It automatically restores power after temporary faults and isolates faulty sections to minimize the impact of outages.
Feature:
1.Strong ability to withstand pollution, high and low temperature resistance, and no combustion or explosion hazards.
2.Fully enclosed structure, filled with SF6 gas in the enclosure, excellent sealing performance, suitable for use in high-temperature and humid areas.
3.Equipped with a current transformer (CT) for outputting current to the intelligent controller for information analysis. The transformation ratio is adjustable, and the connection terminals can be connected to the corresponding terminal sockets.
4.The operating mechanism is innovative and simple, with a small size and light weight, ensuring safe and reliable operation.
5.The outer casing has conspicuous indicators for "energy storage," "open," and "close" states.
Technical Parameters:
| Serial No. |
Parameter |
Unit |
Data |
| 1 |
Rated voltage |
kV |
12 |
| 2 |
Insulation level of Fracture |
Working Frequency(Dry Test/Wet Test) |
48 |
| Voltage of Lightning Shock Test (Peak) |
85 |
| 3 |
Level of Insulation to ground/phase to phase |
Working Frequency |
Dry Test |
42 |
| Wet Test |
34 |
| Voltage of Lightning Shock Test (Peak) |
75 |
| 4 |
Rated Current |
A |
630, 1250 |
| 5 |
Rated short-circuit breaking current |
kA |
16, 20, 25 |
| 6 |
Rated short-circuit breaking current breaking times |
times |
30 |
| 7 |
Rated short-time withstanding current |
kA |
16, 20, 25 |
| 8 |
Rated short-circuit duration |
S |
4 |
| 9 |
Rated short-circuit closing current (peak) |
kA |
40, 50, 63 |
| 10 |
Rated peak withstanding current |
kA |
40, 50, 63 |
| 11 |
Mechanical lifetime |
times |
over 1000 |
| 12 |
Opening rated current |
10000 |
| 13 |
Net Weight |
kg |
180 |
Technical Parameter of Controller:
| Serial No. |
Parameter |
Data |
| 1 |
Woking input voltage |
AC220V |
| 2 |
Input working frequency |
50Hz |
| 3 |
Allowable voltage fluctuation range for input voltage |
±20% |
| 4 |
Total power consumption of the device |
＜10W |
| 5 |
Sampling value of phase current input |
60-600A |
| 6 |
Low voltage operation threshold |
10-140V |
| 7 |
Allowable sampling error for power input value |
±5% |
| 8 |
Overcurrent protection delay time value |
0.1-0.3s |
| 9 |
Setting value for zero-sequence current |
0.2-6A |
| 10 |
Grounding action delay time |
0-1200s |
