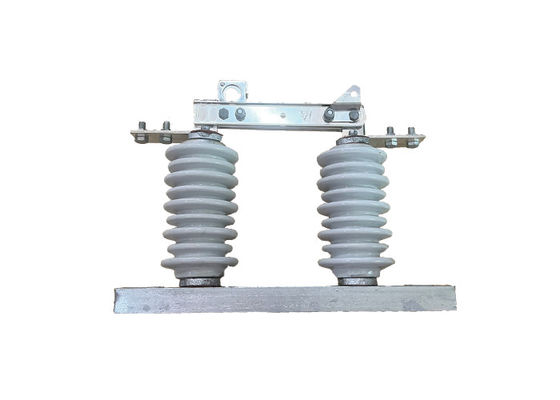

GW9-10/630A High Voltage Loadbuster Electrical Isolator For Oudoor For Protecting Or Controlling

GW9-10/630A High Voltage Loadbuster Electrical Isolator For Oudoor For Protecting Or Controlling

Product Description:

High Voltage Electrcal Isolator is a type of portable device used for isolating and grounding electrical distribution lines for maintenance, repair, or emergency purposes. It is a versatile tool that can be used in a variety of applications, including overhead distribution lines, substations, and industrial facilities.
The Loadbuster Electrical Isolator is designed to be operated by a single person, making it easy to use and maneuver. It consists of a telescoping fiberglass pole, which can be extended to reach the electrical equipment, and a set of interchangeable attachments, which allow the user to perform a variety of tasks, such as opening or closing switches and grounding lines.
The isolator switch is designed to provide a visible break in the electrical circuit, which helps protect against accidental contact with energized equipment. It is also designed to withstand harsh environmental conditions, such as high winds, rain, and snow, making it suitable for use in outdoor environments.

Operation:

High Voltage Electrcal Isolator separates the conductive part from the base using an insulator to ensure a normal working insulation distance and fix the conductive part, insulator, and base as an integral switching device. When it is in the open position, there is a visible gap and a proper breaking insulation distance to withstand the normal working voltage. When it is in the closed position, it can reliably carry the normal working current and short-circuit fault current. Due to the presence of a dedicated arc extinguishing device, it can only be used for switching circuits with voltage but no load. The opening and closing operations are carried out by using an insulating hook to pull or push the round hole in the interlock, causing the dynamic interlock hook to disengage and engage with the static interlock hook.

Application:

1.Maintenance and Repair: The Loadbuster Electrical Isolator is commonly used to isolate and ground electrical distribution lines for maintenance and repair activities. It allows maintenance personnel to work safely on energized equipment without the risk of electrocution.

2.Emergency Response: The Loadbuster Electrical Isolator can be used in emergency situations, such as power outages or natural disasters, to isolate and ground electrical distribution lines and restore power safely.
3.Switching Operations: The Loadbuster Electrical Isolator can be used to open or close switches and perform other switching operations on electrical distribution lines.

Conditon:

1.The altitude does not exceed 1000m
2.The ambient air temperature: Maximum+ 40'C ;Minimum:General Area -30'C, Paramos -40 C;
3.The wind pressure does not exceed 700Pa.(corresponding to 34m/s wind speed);
4.The earthquake intensity does not exceed 8 degrees;
5.The working situation is without frequent violent vibration;
6.The installation site of ordinary type isolator should be kept away form gas, smoke chemical deposition, salt-spray fog, dust
and other explosive and corrosive maters that affect seriously insulation and conduction capability of the isolator
7.Pollution-proof type isolator is applies to severe filthy conduction area, however, it shouldn't be any explosive matters and matters causing fire

Technical Parameters:
