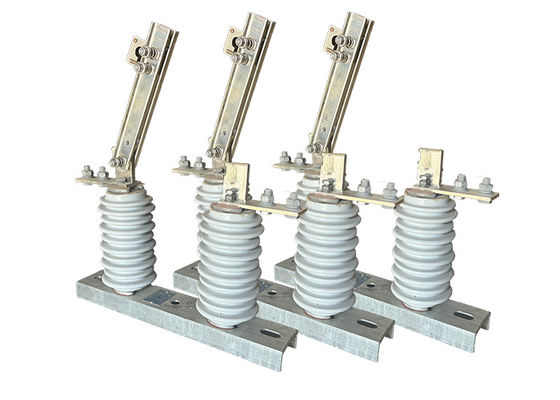

High Voltage AC Power Isolator Disconnect Switch Ceramic Isolator Single Phase Hookstick Operated Disconnect Switch
Product Decription:
The high-voltage electrical isolator, also known as a disconnect switch or an isolator switch, is an essential component in high-voltage power systems. It serves the purpose of disconnecting or isolating a specific section of an electrical circuit from its power source.
The primary function of the high-voltage isolator switch is to physically break the electrical circuit, creating a separation between the equipment and the power source. This disconnection and isolation allow maintenance personnel to work safely on the equipment without the risk of electric shock.
Unlike a vacuum circuit breaker, the high-voltage electrical isolator does not provide arc-quenching capabilities. It is not designed to interrupt or extinguish electrical arcs that may occur during circuit switching or fault conditions.
In high-voltage power systems, the high-voltage electrical isolator is often coordinated with a vacuum circuit breaker. The circuit breaker is responsible for detecting faults and tripping to interrupt the current flow, while the disconnect isolator is operated to physically isolate the circuit and visually indicate the disconnection.
The high-voltage ielectrical isolator plays a critical role in ensuring the safety of maintenance personnel. Before any maintenance work is performed on electrical equipment, the disconnect isolator is operated to open the circuit and create a visible air gap. This action confirms that the equipment is de-energized and safe for maintenance activities.
Operation:
1 Preparation: Before operating the switch, the circuit should be de-energized and properly grounded to prevent any electrical hazards. The switch should be inspected for any signs of damage or wear and tear.
2 Closing the switch: To close the switch, the operator manually or remotely moves the switch handle or control lever to the closed position. This connects the circuit to the power source, allowing current to flow through the circuit.
3 Opening the switch: To open the switch, the operator manually or remotely moves the switch handle or control lever to the open position. This disconnects the circuit from the power source, interrupting the flow of current.
4 Arc management: When the switch is opened, an electrical arc may occur between the contacts, which can be dangerous and cause damage to the switch. To manage the arc, the switch may be equipped with devices such as arc chutes or blowout coils.
5 Safety: Operators of high voltage disconnect switches must follow proper safety procedures to prevent electrical hazards. This may include wearing personal protective equipment, working in teams, and following lockout/tagout procedures.
Structure:
This product is composed of base (plate), post insulator, conductive part and interlock device. One end of the knife is installed on the dynamic contact knife head through bolts, and the other end of the knife is separately connected with the static contact head, and each side is maintained in a good contact state by the pressure of the compression spring. Each knife is slot-shaped type, which not only increases the heat dissipation surface of the knife, but also conducive to reducing the temperature rise, and improve the mechanical strength of the knife, making the dynamic thermal stability against short circuit. The interlocking parts installed at the non-rotating end of the contact knife and the static locking hook on the static contact constitute the opening locking device, which is self-locking when the brake is closed, so that the brake knife will not fall off by itself due to its own weight or the action of electric power, resulting in the opening of the brake without cause.
Safety Risks
1Electrical shock: High voltage disconnect switches can deliver a potentially lethal electric shock if they are not handled properly. This can happen if the switch is not properly isolated before it is opened or if there is a fault in the equipment.
2Arc flash: When high voltage disconnect switches are opened, an arc flash can occur, which can release a significant amount of energy in the form of heat, light, and pressure. This can cause burns, eye damage, and other injuries.
3Equipment failure: High voltage disconnect switches can fail if they are not properly maintained or if they are overloaded. This can lead to equipment damage, electrical fires, and other hazards.
4Environmental hazards: High voltage disconnect switches are often located in outdoor environments, where they can be exposed to extreme weather conditions, such as high winds, heavy rain, and lightning strikes. These conditions can create additional safety risks for personnel who are operating or maintaining the equipment.
P.S.
To minimize the risks associated with high voltage disconnect switches, it is important to follow proper safety procedures, including using appropriate personal protective equipment, following lockout and tagout procedures, and ensuring that only qualified and trained personnel are allowed to operate and maintain the equipment. Regular maintenance and testing of the equipment can also help to reduce the risk of equipment failure and other hazards.
Application:
1.Circuit isolation: High voltage electrical isolators are primarily used to isolate sections of a power system for maintenance or repair work. This allows workers to work safely on the isolated circuit without the risk of electrocution or other electrical hazards.
2.Safety: High voltage electrical isolators are also used as a safety device to protect workers and the public from electrical hazards. By isolating a circuit, High voltage electrical isolators prevent accidental contact with live parts of the system and reduce the risk of electrical accidents.
3.Fault protection: High voltage electrical isolators can also be used to protect the power system from faults, such as short circuits and overloads. By isolating a faulty section of the system, High voltage electrical isolators prevent the fault from spreading to other parts of the system and causing further damage.
4.Switching: High voltage electrical isolators can be used as a switching device to control the flow of power in a system. By opening or closing the isolator, the flow of power can be directed to different parts of the system as needed.
5.Testing: High voltage electrical isolators can also be used for testing purposes, such as to measure the voltage or current in a circuit, or to test the performance of other components in the system.
Technical Parameters:
| Serial No. |
Parameter |
Unit |
Data |
| 1 |
Rated Voltage |
kV |
12 |
| 2 |
Rated Current |
Model No. |
(H)GW9-12(W)/630-20 |
A |
630 |
| (H)GW9-12(W)/1000-20 |
1000 |
| (H)GW9-12(W)/1250-31.5 |
1250 |
| 3 |
4s Short-time withstanding current |
Model No. |
(H)GW9-12(W)/630-20 |
kA |
50 |
| (H)GW9-12(W)/1000-20 |
50 |
| (H)GW9-12(W)/1250-31.5 |
80 |
| 4 |
Rated Insulation Level |
Lightning surge withstand voltage(peak) |
Polar-to-Earth
(Positive & Negative) |
kV |
75 |
Interfracture
(Positive & Negative) |
85 |
Industrial frequency withstand voltage
(1 min)
(Effective value) |
Dry Test/Wet Test |
Polar-to-Earth |
42(Dry)
34(Wet) |
| Interfracture |
48(Dry) |
| 48(Dry) |
48(Dry)
40(Wet) |
| 5 |
Main Circuit Resistance |
μ Ω |
630 |
| 1000 |
| 1250 |
| 6 |
Mechanical Life Time |
times |
50 |
| 50 |
80
|
